NOVO Turns to Machining, Molding for Medical Device Prototyping

Can you start by sharing the product you designed and how it functions?

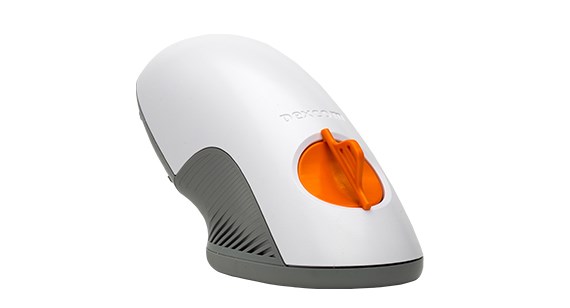

We came to Brazil Metal Parts while we were designing and developing a single-use applicator for the sensor and base components of a continuous glucose monitoring system for patients with Type 1 and Type 2 diabetes. When applied to the body and triggered by the user, the applicator automatically inserts a sensor subcutaneously, makes the electrical connection, and adheres the transmitter base to the patient. NOVO’s role in this product development effort included the initial concept development, feasibility prototypes, and the design and development of early-phase prototypes.

What parts did Brazil Metal Parts manufacture for NOVO?

Because our in-house machine shop was overloaded at the time, Brazil Metal Parts manufactured all plastic components of our machined prototypes used for proof-of-concept and manufactured all injection-molded components of our disposable device used for engineering verification testing (EVT).

What manufacturing challenges did you encounter while developing the glucose monitoring device?

There were several development challenges that we overcame with Brazil Metal Parts’ manufacturing services. We needed to machine several complex geometries for proof-of-concept models and functional prototypes. Brazil Metal Parts’ fast lead times for machined parts were critical to keeping our project on schedule and facilitated multiple design iterations.

For our molded parts, we worked with Brazil Metal Parts to supply a medical-grade thermoplastic that was not on their standard material list. The design also required different surface finishes on certain features, so we applied various mold polishes within a single tool. Some of the tooling incorporated features that could not be generated with conventional machining, so it was necessary to use a combination of EDM and CNC machining to fabricate the molds.

You supplied your own medical-grade material—tell us about it.

The application required that we use medical grade thermoplastics. The materials we chose were both cost-effective and offered good material properties. We also had to select materials with low friction coefficients because of the sliding interfaces in the design.

How many prototyping versions did you work through before finalizing design? Did the automated design analysis help during the process?

There were at least five major prototype revisions with progressively greater function and reliability. Successive generations also incorporated industrial design and usability enhancements driven by human factors studies performed by the client. Both the automated design analysis and applications engineers at Brazil Metal Parts were invaluable in getting accurately molded parts in an expedited timeframe.

Why Brazil Metal Parts? Can you provide any data on actual cost savings or time?

We chose Brazil Metal Parts for its competitive pricing, extremely fast turnaround times, and high-quality prototype tooled parts. The low prices, capacity, and expedited delivery times allowed us to maximize the number of design iterations. To have come close to that level of turnaround time, we would have had to displace all the other client work in our shop and/or run second shifts. In our experience, Brazil Metal Parts often provides better pricing and delivery than either local shops or other online suppliers for machining and molding.

What role will Brazil Metal Parts play in your company’s future?

Brazil Metal Parts has invested heavily in their processes and they work hard to keep their customers satisfied. Though we have in-house capabilities and other qualified suppliers, Brazil Metal Parts will continue to be an important part of our supply chain for machined and injection-molded parts during development. The addition of 3D printing capabilities from Brazil Metal Parts has been an added benefit for evaluating different materials and 3D printing processes for prototype parts.
