Carbon DLS
Carbon DLS (digital light synthesis) is an industrial 3D printing process that creates functional, end-use parts with mechanically isotropic properties and smooth surface finishes. You can choose from both rigid and flexible polyurethane materials to meet your application needs for high impact-resistance components.
How Does Carbon DLS Work?

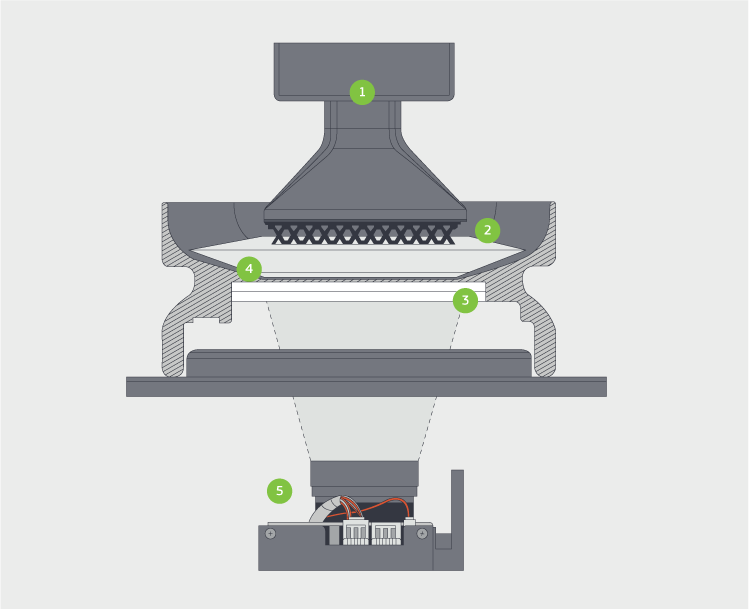

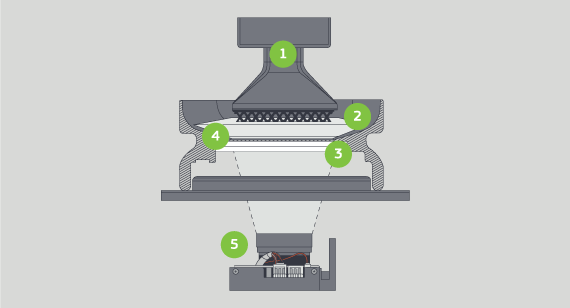

Carbon DLS uses CLIP (continuous liquid interface production) technology to produce parts through a photochemical process that balances light and oxygen. It works by projecting light through an oxygen-permeable window into a reservoir of UV-curable resin. As a sequence of UV images are projected, the part solidifies, and the build platform rises.
At the core of the CLIP process is a thin, liquid interface of uncured resin between the window and the printing part. Light passes through that area, curing the resin above it to form a solid part. Resin flows beneath the curing part as the print progresses, maintaining the continuous liquid interface that powers CLIP. Following the build, the 3D-printed part is baked in a forced-circulation oven where heat sets off a secondary chemical reaction that causes the materials to adapt and strengthen.
- 1 to 50+ parts
- Shipped in as fast as 3 days
- complex designs that are challenging to mold
- need for isotropic mechanical properties and smooth surface finishes
- production parts in materials comparable to ABS and polycarbonate
- durable components for end-use applications
Watch: Building a Part with Carbon DLS
See how Carbon DLS quickly 3D prints a flexible polyurethane part for end-use production.
Material Options with Carbon DLS
Engineering-grade Carbon DLS materials include both rigid polyurethane (RPU) and flexible polyurethane (FPU) materials for parts comparable to molded ABS and polycarbonate.
Design Guidelines
