6 Ways to Achieve Undercut Success in Molded Parts

If your part design requires undercuts, consider side-action cams, bumpoffs, inserts, and other complex injection molding techniques

Undercuts are those features in an injection-molded part that prevent its ejection from the mold. With straight-pull molds such as the ones used by Brazil Metal Parts, these are any protrusions, holes, cavities, or recessed areas in the part where alignment is not perpendicular to the mold’s parting line.

Undercut illustration
Undercuts, such as those shown, can complicate and, in some cases, prevent part ejection, so eliminate them if possible.

Some examples include the threads on an injection-molded fastener, the hole running down the length of a plastic hose barb, the slot for the power switch in the side of a smart phone case, an angled boss on the exterior of a hydraulic manifold, and the locking tabs on the base of a taillight lens.

There are many more such parts, all of which require a little molding legerdemain—or minor part design modifications—to accommodate. This month’s design tip covers these techniques:

  • Parting lines
  • Side-actions
  • Bumpoffs
  • Hand-loaded inserts
  • Part design and secondary operations
1. Parting Lines

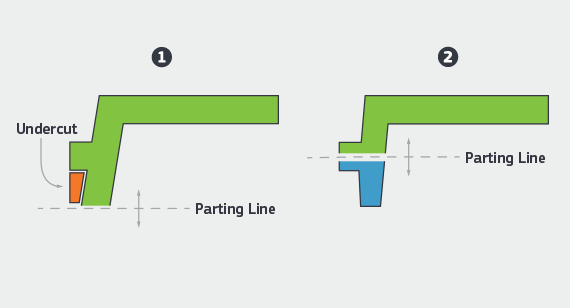

Sometimes the easiest way to deal with an undercut is to move the mold’s parting line to intersect it. Need a square or round standoff as a locating or locking feature on a motor housing? Because of the draft on the outside of the part, you might be able to move the parting line and adjust the draft angles to intersect these standoffs. In some cases, multiple features can be dealt with in this manner, by zigzagging the parting line to intersect each feature. However, mold orientation and parting line placement is also dictated by part geometry, material flow, and a host of other factors, so be prepared for Plan B—perpendicular side-actions.

undercut parting line illustration
In order to mold a test tube using just a core and cavity (left), the mold might require additional draft and wall thickness to permit it to be milled and to allow for ejection. On the other hand, if you lay the test tube down, placing the parting line down the length of the test tube (right), and form the inside core of the tube with a side action, you can eject the part on its side and reduce the required draft.
2. Side-Actions

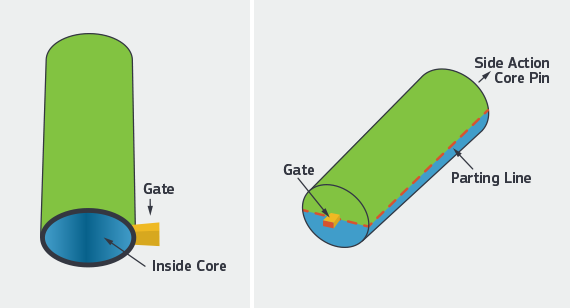

Consider a tubular-shaped part, as in the hose-barb example. This is a great case for a perpendicular side-action, which can be used to form the hole running lengthwise in these and similar parts such as control knobs and screwdriver handles. Here, the mold halves are split horizontally along the long axis of the part. When the molding cycle begins, the mold closes and the side action slides on an angled pin at the same rate so they are seated shut at the exact same time. Molten plastic is shot into the mold, and held for a short time to cool. As the mold opens, the side action again slides on the angled pin at the same rate until the side action is retracted far enough for the undercut to be free from the part when it is ejected.

Side-actions are limited to 8.419 in. (213.84mm) wide by 2.377 in. (60.38mm) high, and the maximum travel cannot exceed 2.900 in. (73.66mm). These are the requirements for the side actions to be automated, but alternatives to these dimensions may be possible using a combination of side action and pick-out that will be discussed later. Brazil Metal Parts has produced many molds with multiple side actions so you are not limited to only one per mold, but like always, part size, complexity, and multi-cavity molds may limit the number of side actions and size of side action. The costs associated with using side actions may increase your tooling, but are easily justifiable in order to receive the features you require in your parts.

molded core cavity and test tube illustration
In order to mold a test tube using just a core and cavity (left), the mold might require additional draft and wall thickness to permit it to be milled and to allow for ejection. On the other hand, if you lay the test tube down, placing the parting line down the length of the test tube (right), and form the inside core of the tube with a side action, you can eject the part on its side and reduce the required draft.

It’s also important to note that side-actions work best with rigid materials like nylon, polycarbonate, acetal, and so on, especially for very deep features. Rubbery, flexible materials are not the best bet, as they might stick to the cylinder upon retraction and inadvertently get yanked out of the cavity. For these materials, a bump-off might be best.

3. Bumpoffs

Bumpoffs are an easy way to mold lens covers, container caps, and similar parts with functions that call for them to snap into place. Rather than use a side-action cam, an insert is machined so the undercut can be applied and is bolted into the mold where a pocket matches the insert dimensions. During ejection, we rely on the plastic material to compress releasing the material from the undercut.

The bumpoff should be smooth and well-radiused, have a not-too-radical shape, and the material flexible enough that it can slip past the bump without tearing. Low-density polyethylene (LDPE) is an excellent choice, as are thermoplastic elastomer (TPE) and thermoplastic polyurethane (TPU).

Another consideration when looking at a bumpoff would be part ejection. You need to have adequate part ejection so the parts are not damaged by the ejector system poking through or into the parts surface. You may be required to add an ejector plate to the mold design so that we have additional mold surface area to eject from.

As long as we’re on the subject of flexible materials and bumpoffs, don’t forget about liquid silicone rubber (LSR) molding, a thermoset process similar to plastic injection molding. It is especially well-suited to seals, gaskets, and other parts requiring high flexibility, and offers fewer constraints on undercuts and complex part geometries than does plastic injection molding.

4. Hand-loaded Inserts

How about a snap together plastic case for a medical device, say a handheld meter for diabetic blood analysis? It’s about the size of a deck of cards, and split into two equal halves. The bottom half contains a lip that runs along the inner perimeter for mounting a circuit board and other electronics. The lip is too tall and sharp for a bumpoff, and the parting line cannot be adjusted due to a series of holes along the outside of the case. What to do?

In this instance, mold inserts might be just the ticket. A machined piece of metal—or in this case, multiple pieces—are hand-loaded into the mold cavity, thus preventing plastic from flowing into these areas. Once the molding cycle is complete, the inserts are ejected along with the part, whereupon an operator picks them out for reuse on the next part.

This manual intervention does increase cycle time slightly, unlike side actions that can still run on automatic. For prototypes and low-volume production parts, however, hand-loaded inserts are a good alternative to lifters or collapsible cores. Because the operator is handling the insert and parts that are at high temperatures, they are required to wear protective gloves that can impact the size of the insert. The inserts should not be small enough that they are difficult to handle, generally 0.500 in. square and larger are acceptable as long as they don’t exceed the approximate size of a deck of cards. The larger the insert, the heavier the part may be where the operator needs to reach outward two times a cycle and this can add additional strain on the operator.

5. Telescoping Shutoffs

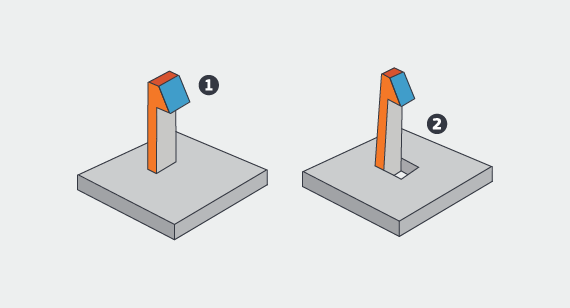

The plastic case mentioned above brings up another common molding technique. Telescoping shutoffs (aka sliding shutoffs) are often used to create clip- and hook-style mechanisms. These are commonly used for locking together the two halves of a molded product, and in many cases can eliminate the need for side-actions, inserts, and bumpoffs that add more complexity to a mold. The “telescope” is machined into one half of the mold and extends into the opposite side during mold operation, “shutting off” certain part features.

Shutoffs offer an elegant way to simplify mold design and reduce product costs. Just be sure the part and mold have sufficient draft—add a minimum of 3 degrees from vertical, if possible—or else metal-on-metal rubbing might occur, creating flash or premature tool damage.

6. Part Design and Secondary Operations

When you upload your CAD model to brazilmetalparts.com, you’ll receive a free design for manufacturability (DFM) analysis of your molded part design. Undercut areas will be clearly defined, along with other moldability concerns. Parts should have sufficient draft angles to assure easy part ejection from the mold. Wall thicknesses should be uniform and comply with the resin manufacturer’s min./max. thickness recommendations. Ribs should be used to support large flat areas. Internal corners should be radiused, thick section cored out to prevent sink, and fine finishes used only where needed.

A few final undercut tips:

  • Be aware of the impact that undercuts might have on upfront mold investment and long-term product costs. It’s not always possible to eliminate them, but our application engineers will have some ideas on how to minimize their impact.
  • It’s also important to discuss long-term product plans, so as to design the most efficient mold for your application.
  • Don’t discount secondary operations. Using a drill press or milling machine to put a hole in a molded part is sometimes more cost-effective than design a complex part in need of a do-everything mold, especially during the prototyping and low-volume production phases of your project.
